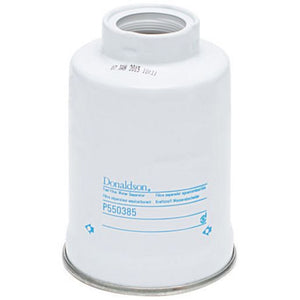

Donaldson Fuel Filter Water Separator Spin-On for Toyota Landcruiser with Sensor Port
P550385 Donaldson Fuel Filter Water Separator Spin-On for:
Toyota Hilux 1997-00 3.0L 5.0L LN172
Toyota Hilux 1984-88 2.4L 2.0L LN147
Toyota LandCruiser J100 Series 1998-07 4.2L 1HZ
Toyota LandCruiser J70 Series 1990-07 4.2L 1HZ 1HD-FTE
Toyota LandCruiser J80 Series 1991-97 4.2L 1HZ 1HD-T
Toyota LandCruiser Prado J120 2006-07 3.0L 1KD-FTV
Toyota LandCruiser Prado J150 2009-15 3.0L 1KD-FTV
Cross Reference:
Toyota 2300364010, 23300030200, 2330064010, 2330356040,
2330364010, 2330364020, 233037600171, 233037600271,
2339030180, 2339036760, 2339064480, 233907600171, FC1104,
Trucks 16403050, 164030500, 1640959R00, A640C59EM0
Yanmar 11977355510, 11977355710
Sakura FC1115 | Ryco Z252X | Fleetguard FF5159
Specifications:
Outer Diameter 93.3mm (3.67 inch)
Thread Size 3/4-16
Length 137mm (5.39 inch)
Gasket OD 62.5mm (2.46 inch)
Gasket ID 56.5mm (2.22 inch)
Outlet Size M36 x 1.5
Efficiency Beta 75 10 micron
Efficiency Test Std JIS D 1611
Emulsified H2O Efficiency 95 Percent
Collapse Burst 6.9 bar (100 psi)
Type Water Separator
Style Spin-On
Primary Application Toyota 2330364010
Packaged Dimensions:
Gross Length 4.1" (10.4cm)
Gross Width 4.1" (10.4cm)
Gross Height 6" (15.2cm)
Gross Weight 1.065lb (1.07kg)
Donaldson Fuel Filters
Donaldson Diesel Fuel Filters are uniquely designed to protect injectors and pumps and keep engines and heavy-duty Equipment running smoothly. Today‘s diesel engines need to maintain high performance levels to remain compliant with stringent emissions regulations. Fuel filtration plays a key role, with current high pressure common rail fuel injectors operating at pressures up to 2,000 - 3,100 bar / 30,000 - 45,000 psi. Clean fuel helps minimize expensive repairs and unplanned downtime. Donaldson offer fuel filtration products to protect your fuel systems – including injectors, pumps and engines. We offer a complete line of Fuel Filters for popular on and off-road applications. Spin-Ons and Cartridges are available in a wide range of filter medias.
Donaldson Air / Oil Separators
Donaldson air-oil separators efficiently remove oil mist from compressed air while maintaining low pressure drop and maximum airflow.
